Original Article

Combined treatment with extracorporeal shockwaves therapy and an herbal formulation for activation of penile progenitor cells and antioxidant activity in diabetic erectile dysfunction

Seung Hwan Jeon1,2#, Woong Jin Bae1,2#, Guan Qun Zhu1,2, Wenjie Tian1,2, Eun Bi Kwon1,2, Ga Eun Kim1,2, Sung Yeoun Hwang3, Kyu Won Lee1,2, Hyuk Jin Cho1, U-Syn Ha1, Sung-Hoo Hong1, Ji Youl Lee1, Sae Woong Kim1,2

1Department of Urology, College of Medicine, 2Catholic Integrative Medicine Research Institute, The Catholic University of Korea, Seoul, Republic of Korea; 3KEMIMEDI, Seoul, Korea

Contributions: (I) Conception and design: SH Jeon, WJ Bae; (II) Administrative support: WJ Bae; (III) Provision of study materials or patients: All authors; (IV) Collection and assembly of data: SH Jeon, WJ Bae, SW Kim; (V) Data analysis and interpretation: SH Jeon, WJ Bae, SW Kim; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this study and should be considered co-first authors.

Correspondence to: Sae Woong Kim, MD, PhD. Department of Urology, Seoul St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, 222, Banpo-daero, Seocho-gu, Seoul, 06591, Republic of Korea. Email: ksw1227@catholic.ac.kr.

Background: A Korean herbal formulation named KH-204 was reported to have an antioxidant effect in our previous study. We hypothesized that Low-intensity extracorporeal shockwave therapy (Li-ESWT) combined with KH-204 would accelerate the treatment of erectile dysfunction (ED) by enhancing antioxidant. We investigated the synergistic effect of Li-ESWT and KH-204 for ED and explored the mechanism.

Methods: Human umbilical vein endothelial cells (HUVEC) were treated with KH-204 and LI-ESWT in vitro. Fifty 5-week-old male Sprague Dawley rats received an intraperitoneal injection of 5-ethynyl-20-deoxyuridine (EdU) which can label live cells, and were randomly divided into five groups: (I) normal; (II) diabetes mellitus-associated erectile dysfunction (DMED); (III) DMED + KH-204; (IV) DMED + Li-ESWT; and (V) DMED + KH-204/Li-ESWT. Li-ESWT treatment was repeated three times a week every other day for four weeks in group 4 and 5. Meanwhile, rats in group 3 and 5 were orally fed 400 mg/kg of KH-204 daily for 1 month. Following a 1-week washout period, penile tissues were evaluated by immunostaining and Western blotting.

Results: KH-204 combined with Li-ESWT improved intracavernosal pressure (ICP) in DMED rats. Li-ESWT/KH-204 stimulated HUVEC tube formation and promoted proliferation. Li-ESWT drove progenitor cells to migrate to penile tissue and KH-204 protected penile progenitor cells in the corpus cavernosum. Oxidative stress was relieved by KH-204/Li-ESWT. Treatment with KH-204/Li-ESWT protected penile progenitor cells, which were recruited to the corpus cavernosum by Li-ESWT, from apoptosis via its antioxidant activity. KH-204/Li-ESWT protected penile tissue from oxidative stress by improving the expression of nuclear factor erythroid 2-related factor 2 (Nrf2)/heme oxygenase-1 (HO-1), increasing superoxide dismutase (SOD), decreasing 8-hydroxy-20-deoxyguanosine (8-OHdG), and reducing apoptosis. KH-204/Li-ESWT promoted stromal derived factor-1 (SDF-1) and platelet endothelial cell adhesion molecule-1 (PECAM-1) in DMED rats.

Conclusions: KH-204 protected penile progenitor cells, which were recruited to the corpus cavernosum by Li-ESWT, from apoptosis via its antioxidant activity. The combination of Li-ESWT and KH-204 as a synergy therapy could be a potential and effective treatment for DMED.

Keywords: Low-intensity extracorporeal shockwave therapy; diabetes mellitus; erectile dysfunction (ED); herbal formulation; antioxidant; progenitor cells


Submitted Oct 01, 2019. Accepted for publication Jan 06, 2020.

doi: 10.21037/tau.2020.01.23


Introduction

The prevalence of erectile dysfunction (ED), related to obesity and diabetes has increased continuously for decades (1,2). The etiology of diabetes mellitus ED (DMED) is the distal vascular injury caused by hyperglycemia (3). Presently, various therapeutic strategies exist to improve erectile function (4-7). However, for DMED, first-line drug treatments like PDE5i have been associated with poor responses (8). Therefore, there is an urgent need for effective approaches to DMED.

In a very recent meta-analysis (5), an herbal treatment was recognized as an alternative therapy for ED. In 2004, Park et al. (9) found that Ojayeonjonghwan, an herbal formulation known as KH-204, improved ED in aged and diabetic rats. From our extensive research with KH-204, we knew it could boost cells' antioxidant capabilities in vivo (10). For DMED patients, increased oxidative stress could contribute to vascular endothelial injury in the corpus cavernosum and subsequently, aggravate ED (11). According to the above studies, KH-204 might be a potential way to improve DMED.

Low-intensity extracorporeal shockwave therapy (Li-ESWT) has been used to treat musculoskeletal disorders (12), myocardial infarction (13), and even ED (4) for many years, since therapeutic ultrasound has been shown to improve angiogenesis by inducing VEGF expression (14). After Vardi et al. (6) treated ED patients with Li-ESWT clinically, numerous basic studies have explored the mechanism of Li-ESWT (15,16) for ED. Besides inducing angiogenesis, Li-ESWT was also found to promote stem cell homing to the corpus cavernosum in treated ED rats (7). The homing stem cells gathered around the injured tissues and showed regenerative effects on the nerve injuries caused by ED. But under a high oxidative stress environment, further apoptosis of stem cells was inevitable, which diminished the stem cells’ effect (17).

In this study, we established a DMED rat model, then administered ESWT or KH-204. And cell experiment was performed for exploring the mechanism of KK-204. We hypothesized that Li-ESWT combined with KH-204 would accelerate the treatment of ED and explored the mechanism of this treatment.


Methods

Cell culture and experimental design

Human umbilical vein endothelial cells (HUVECs, Korean Cell Line Bank, Seoul, Republic of Korea) cultured in low glucose-containing Dulbecco’s modified Eagle’s medium (DMEM) (Gibco, Waltham, MA, US) supplemented with 20% fetal bovine serum (FBS), (Gibco, Waltham, MA, US) and 5 ng/mL basic fibroblast growth factor (bFGF) (Cell Signaling Technology, Danvers, MA, US) at 37 °C and 5% CO2. After 2 days, the non-adherent cells were removed and the culture media were replaced. The culture media were changed every other day. Cells were passaged when they reached approximately 90% confluence. HUVECs were divided into four groups: the sham, KH-204, Li-ESWT, and KH-204/Li-ESWT groups. Cells in the KH-204 group were treated with KH-204. Cells in Li-ESWT group were administered Li-ESWT. Cells in the KH-204/Li-ESWT group received combined treatment with KH-204 and Li-ESWT. Cells in the sham group were controls.

Li-ESWT administration to the HUVECs

Li-ESWT was administered to the cultured HUVECs using an extracorporeal shockwave machine (CENOWAVE; HNT MEDICAL Co., Ltd, Seoul, Korea). The shockwave probe was kept in contact with the culture dish containing adherent HUVECs by a water-filled cushion covered with common ultrasound gel. The cells were subjected to 200 impulses of Li-ESWT at an energy flux density of 0.09 mJ/mm2 with a frequency of 120/min. The detail was performed as previously described (16,18). Twenty minutes of Li-ESWT was performed on the adherent HUVECs only once for each passage.

KH-204 preparation

The major ingredients in KH-204 include five plants: Cornus officinalis (32%), Lycium chinense (32%), Rubus coreanus (16%), Cuscuta chinensis (16%), and Schisandra chinensis (4%) and were purchased from a company that produces oriental herbal medicines (KEMIMEDI, Seoul, Korea). The quality of each extract was confirmed using high-performance liquid chromatography as previously described (19,20). The marker compounds of Cornus officinalis, Lycium chinense, Rubus coreanus, Cuscuta chinensi, and Schisandra chinensis were identified as loganin, betain, ellagic acid, hyperoside, and Schizandrin, respectively, by the HPLC analyses. Each herb (20 kg) was extracted in 200 L of distilled 30% ethanol and refluxed at 98±2 °C for 3 h. The extract was filtered and the liquid from the filtrates was removed by a rotary evaporator and a spray dryer. The side effects and fabrication of KH-204 appeared in a previous publication (21).

KH-204 treatment in vitro and cell tubule formation assay

Two hundred microliters of BD growth factor reduced (GFR) Matrigel™ Basement Membrane Matrix (BD Biosciences, Franklin Lakes, NJ, US) was added to a 24-well plate and incubated at 37 °C for 30 minutes, then HUVECs (1×105 cells/well) were incubated in one plate coated with Matrigel in endothelial growth media (EGM) and on a plate coated with endothelial basal media (EBM) (18). KH-204 (50 µg/mL) was added to the plates for two hours in the KH-204 group and KH-204/Li-ESWT groups (10). The other group received an equal amount of medium as a control. After cell adherence, Li-ESWT was performed on the Li-ESWT group and KH-204/Li-ESWT group cells for 20 min. After 12 hours of treatment, the cells were stained using calcein AM dye (2 µg/mL). The formation of cell tubules was observed with an Axio200 fluorescence microscope (Zeiss, Oberkochen, Germany). Images were traced and skeletonized using Image and the angiogenesis tool. The total number of meshes, nodes, and junctions were quantified for each skeleton.

Experimental animals and study design

Fifty 5-week-old male Sprague-Dawley rats weighing about 230–280 g were purchased from a Korean company (Orient Bio Co., Seongnam, Korea). All animal experiments in this study were approved by the Institutional Animal Care and Use Committee of the Catholic University of Korea (CUMC-2016-0218-01). After fasting, eight rats were randomly chosen as a control group and were injected intraperitoneally with saline. In the other rats, ED was induced by an intraperitoneal injection of streptozotocin (STZ, Sigma Aldrich Chemical Company, St. Louis, MO, US) at a dose of 60 mg/kg body weight. Only rats with a fasting blood glucose level of ≥300 mg/dL were selected as diabetic and used for further experiments (N=36). The detail was performed as previously described (18). The selected rats were randomly divided into four groups of eight rates: DMED, DMED + KH-204, DMED + Li-ESWT, and DMED + KH-204/Li-ESWT. Before treatment, all rats received an intraperitoneal injection of 50 mg/kg EdU (Invitrogen, Carlsbad, CA, US) to identify penile progenitor cells (22).

KH-204 Treatment and Li-ESWT Administration

After four weeks, during which DMED was established in the rat, DMED + KH-204 and DMED + KH-204/Li-ESWT rats were fed daily with 400 mg/kg of KH-204 for one month as previously described (10). Distilled water was fed to the other rats as controls. Meanwhile, rats in the DMED + Li-ESWT and DMED + KH-204/Li-ESWT groups underwent Li-ESWT treatment. In brief, under anesthesia, each rat was placed in the supine position and shaved and the prepuce was degloved. Ultrasound gel was applied to the penis and a shockwave applicator was placed at the penis. A total of 300 shocks were delivered at an energy level of 0.1 mJ/mm2 and a frequency of 120 shocks/min. This procedure was performed three times a week with one day break for four weeks, which is similar to the treatment course used for patients with ED in clinical practice (6).

Evaluation of erectile function

Following a 1-week washout period for reducing the side effects of drugs, erectile function was assessed by measuring the intracavernous pressure (ICP) and mean arterial pressure (MAP) under anesthesia. A 23-gauge butterfly needle containing 250 U/mL heparin solution was carefully inserted into the proximal corpus cavernosum and the other end of the PE-50 tube was connected to a Grass model S48 K pressure transducer (Astro-Med Inc., West Warwick, RI, US) to measure the ICP. A bipolar stainless-steel electrical stimulator was used to stimulate the major pelvic ganglion with 10 V for 50 seconds and 2.4 mA with a pulse width of 2.5 milliseconds. The maximum ICP value of the three stimulations was used for statistical analysis for each rat. The ICP was normalized to the MAP, which was recorded using a BD Intramedic PE-50 tubing (BD, Franklin Lakes, NJ, US) inserted into the left carotid artery at the same time. After erectile function measurements, the rats were sacrificed and the penises were harvested for immunohistochemistry and Western blot analyses.

Histology and immunofluorescent staining

The collected penile samples were fixed in 4% paraformaldehyde for 24 hours at 4 °C before embedding in paraffin blocks. The primary antibodies used were as follows: neuronal nitric oxide synthase (nNOS, diluted 1:200; Santa Cruz Biotechnologies, Santa Cruz, CA, US), β-tubulin (diluted 1:200; Abcam, Cambridge, UK), anti phospho-histone H3 (H3P; diluted 1:200; Santa Cruz Biotechnologies, Santa Cruz, CA, US), isolectin B4 (IB4, diluted 1:500; Cell Signaling Technology, Danvers, MA, US), and caspase-3 (diluted 1:200; Abcam, Cambridge, UK). 6-diamidino-2-phenylindole (DAPI; Vector Laboratories, Inc., Burlingame, CA, US) was used to stain the nuclei. Digital images were obtained using a Zeiss LSM 800 Meta confocal microscope (Zeiss, Oberkochen, Germany) and the mean intensity was calculated using ZEN 2012 (Zeiss, Oberkochen, Germany).

Terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) assay

Penile paraffin sections were stained by TUNEL using the In Situ Cell Death Detection Kit, TMR red (Roche Diagnostics GmbH, Mannheim, Germany) according to the manufacturer’s protocols. The apoptotic index was expressed as the number of TUNEL and DAPI-positive cells in three randomly-chosen sections of the corpus cavernosum per animal, obtained as digital images using a Zeiss LSM 800 Meta confocal microscope (Zeiss, Oberkochen, Germany) and colocalization was calculated using ZEN 2012 (Zeiss, Oberkochen, Germany).

Measurement of oxidative stress

Oxidative stress in the penile tissue was assessed quantitatively by measuring 8-hydroxy-2-deoxyguanosine (8-OHdG) and superoxide dismutase (SOD) levels using species-specific 8-OHdG and SOD immunoassay ELISA kits (R&D Systems Europe, Abingdon, UK) according to the manufacturer’s instructions. The absorbance was read at a wavelength of 450 nm in a microplate reader (Synergy H1 M; Biotek, Winooski, VT, US). At least three separate plates of cells were assayed for each clone.

Western blot analyses

The collected corpus cavernosum tissue was homogenized using ice-cold RIPA buffer (Cell Signaling Technology, Danvers, MA, US) containing an ethylene diamine tetra acetic acid-free protease inhibitor cocktail and phosphatase inhibitor cocktail (Roche Diagnostics GmbH, Mannheim, Germany). Particulate mass was removed by centrifugation (15,000 g) for 15 min at 4 °C. Supernatants were analyzed by SDS-PAGE. Primary antibodies used included stromal cell-derived factor-1 (SDF-1) diluted 1:200, Abcam, Cambridge, UK), platelet endothelial cell adhesion molecule (PECAM-1) diluted 1:500 (Abcam, Cambridge, UK), and β-actin diluted 1:1,000 (Abcam, Cambridge, UK).

Statistical analyses

All data are presented as the mean ± standard deviation (SD) and were analyzed by SPSS version 22.0 software (IBM, Armonk, NY). One-way ANOVA and Scheffe’s test, as appropriate, were used to evaluate whether differences among the groups were significant. A P<0.05 was considered statistically significant.


Results

KH-204/Li-ESWT significantly improved ED

Representative images of ICP results are shown in Figure 1A. The results showed that the ICP of the DMED + KH-204/Li-ESWT group was higher than that in the DMED group. The quantitative results (Figure 1B) showed that KH-204 combined with Li-ESWT improved DMED. The ratio of ICP/MAP was significantly higher in the DMED + KH-204/Li-ESWT group than in the DMED + KH-204 (P<0.05), DMED + Li-ESWT (P<0.05) and DMED groups (P<0.01).

Figure 1 Erectile function of each group. (A) Representative images of intracavernous pressure (ICP) in response to electrical stimulation of the cavernosal nerve; (B) results of the ratio of ICP to the mean MAP of each group. Each bar shows the mean values (standard deviation). *, P<0.01 compared with DMED rats; **, P<0.05 compared with DM + ESWT and DM + MSCT groups.

Li-ESWT/KH-204 promoted tube formation in vitro and stimulated proliferation in vivo

To explore cell proliferation after KH-204 and Li-ESWT treatment, we measured the expressions of H3P and IB4 in the corpus cavernosum. Figure 2A shows that after KH-204 and Li-ESWT treatment, the expression of H3P and IB4 increased, meaning that the administration of KH-204 and Li-ESWT stimulated proliferation in the corpus cavernosum and more angiogenesis. Figure 2B shows the formation of tubes in vitro for each group. Figure 2C shows the quantitative analysis of tube formation and demonstrates that more HUVECs were formed into tubes (P<0.01) after KH-204 and Li-ESWT treatment compared to the sham group.

Figure 2 KH-204/Li-ESWT promotes tube formation in vitro and stimulated proliferation in vivo. (A) Representative images of IB4 and H3P. After KH-204 and Li-ESWT treatment, the expression of H3P and IB4 was increased. Original magnification: ×200. (B) Fluorescence microscopy images showing formation of tube network. Original magnification: ×50. (C) Quantitative results of the total meshes in each group. *, P<0.05 compared with DMED group; **, P<0.01 compared with DMED group.

KH-204 increased penile progenitor cells survival after Li-ESWT homed them to the corpus cavernosum

Before treatment, all rats received intraperitoneal injections of 50 mg/kg EdU. At the fourth week post-injection, we performed immunofluorescence staining to examine the penile progenitor cells in the corpus cavernosum. Figure 3A shows the outcome of EdU-labelled penile progenitor cells. Figure 3B shows the quantitative results in each group. After treatment with the combination of KH-204 and Li-ESWT, there were more penile progenitor cells in the corpus cavernosum (P<0.01) compared to the DMED group and in Li-ESWT-only group, the number of penile progenitor cells was more than in the DMED group (P<0.05).

Figure 3 KH-204 maintains penile progenitor cells survival after Li-ESWT homed them to the corpus cavernosum. (A) Representative images of corpus cavernosum. Original magnification: ×200. (B) Quantitative results of EdU-labelled cells. *, P<0.05 compared with DMED group; **, P<0.01 compared with DMED group.

Oxidative stress was relieved by KH-204/Li-ESWT through the Nrf2/HO-1 pathway

Oxidative stress in the penile tissue was assessed quantitatively by measuring 8-OHdG and SOD levels by ELISA for each group. Figure 4A and B show the results of the 8-OHdG and SOD ELISA analyses. After KH-204 or Li-ESWT, the oxidative stress in the corpus cavernosum was decreased (P<0.05). However, the combination of KH-204 and Li-ESWT was not different than the single treatments alone. Figure 4C shows the Nrf2 and HO-1 expression in each group after treatment. Figure 4D shows the relative band density of the Western blot results. The Nrf2 and HO-1 expressions after KH-204 or Li-ESWT treatments were higher than in the DMED group (P<0.05), and the Nrf2 and HO-1 expressions after the combined treatment with KH-204 and Li-ESWT were higher than in the DMED group (P<0.01). Apparently, the combination of KH-204 and Li-ESWT stimulated the Nrf2/HO-1 pathway to regulate the oxidative stress.

Figure 4 Oxidative stress is relieved by KH-204/Li-ESWT through the Nrf2/HO-1 pathway. (A) and (B) are representative results of 8-OHdG and SOD analyzed by ELISA in each group. #, &, P<0.05 compared to DMED group. (C) Western blot results of each group in the corpus cavernosum. (D) Relative band densities of Western blot results in each group. *, P<0.05 compared to DMED group; **, P<0.01 compared to DMED group.

KH-204/Li-ESWT decreased apoptosis in DMED rats

Apoptosis in the corpus cavernosum was examined by TUNEL. Figure 5A shows the apoptotic cells in the corpus cavernosum for each group. Clearly, after Li-ESWT apoptosis was decreased. Figure 5B presents the apoptotic index for each group. After KH-204 treatment, apoptosis was less than in the DMED group (P<0.05). And, not only Li-ESWT but the combination of KH-204 and Li-ESWT, further reduced apoptosis in the corpus cavernosum (P<0.01).

Figure 5 KH-204/Li-ESWT decreases apoptosis in DMED rats. (A) Representative images of TUNEL in the corpus cavernosum. Apoptotic cells are red, blue are DAPI-labelled cells. Original magnification: ×200. (B) Apoptosis index. *, P<0.05 compared to DMED group; **, P<0.01 compared to DMED group.

Li-ESWT increased nNOS expression in the corpus cavernosum

The nNOS expression in Li-ESWT rats was higher than in those who did not receive Li-ESWT treatment. Figure 6A shows the nNOS expression in each group and Figure 6B shows the quantitative results in each group. After Li-ESWT, the nNOS expression was higher than in other groups (P<0.01). However, after KH-204 treatment alone there was no nNOS in the corpus cavernosum.

Figure 6 Li-ESWT increases nNOS expression in the corpus cavernosum. (A) Representative images of nNOS staining in the corpus cavernosum; (B) the ratio of positive nNOS in each group. Each bar shows the mean values (standard deviation). Original magnification: ×400. *, P<0.01 compared with DMED control group.

KH-204/Li-ESWT promoted SDF-1 and PECAM-1 in vivo

Lastly, the chemotactic factors were explored in vivo for each group. Interestingly, Figure 7A shows the SDF-1 and PECAM-1 expressions were higher after Li-ESWT. Figure 7B shows the quantitative results of Western blots. After Li-ESWT, the expressions of SDF-1 and PECAM-1 were increased in vivo (P<0.05). The combination of KH-204 and Li-ESWT increased SDF-1 and PECAM-1 expressions more (P<0.01). Perhaps, the KH-204-decreased oxidative stress prevented more penile progenitor cells from moving to the corpus cavernosum, which increased expression of the chemotactic factors.

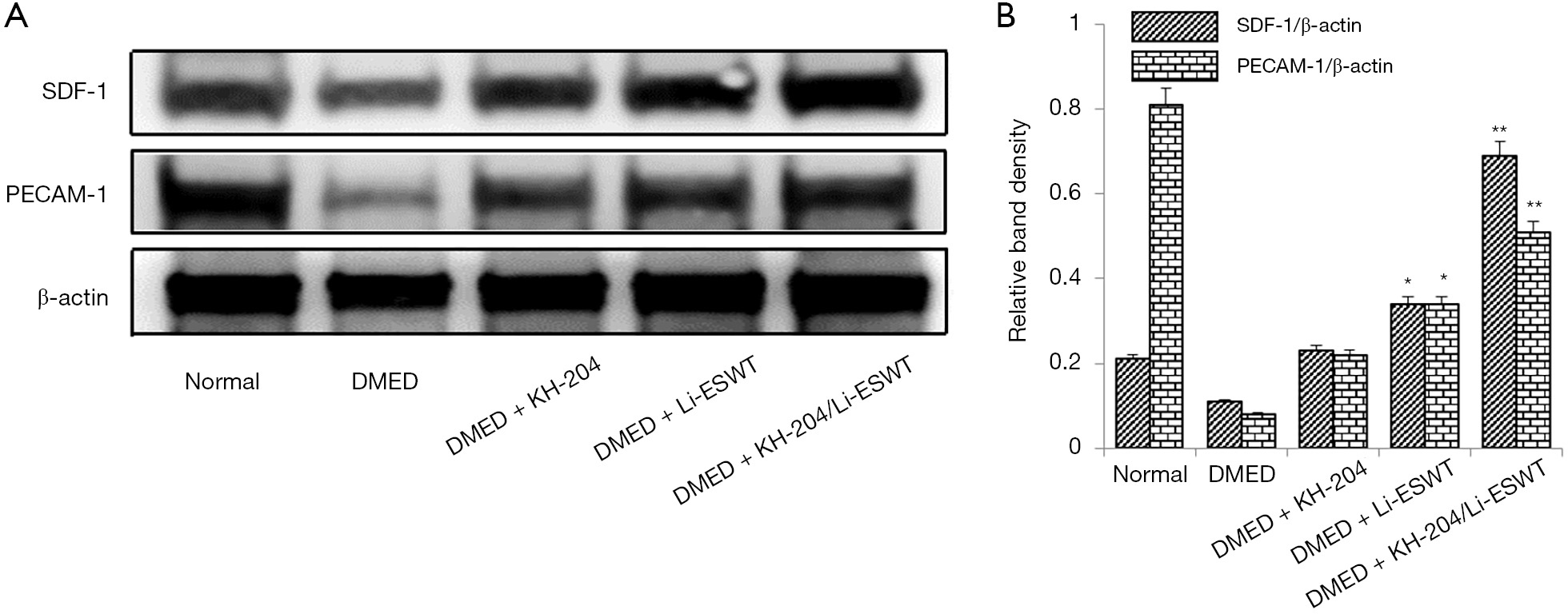

Figure 7 KH-204/Li-ESWT promotes SDF-1 and PECAM-1 expression in vivo. (A) Western blot results of each group in the corpus cavernosum; (B) relative band densitities of the Western blot results in each group. *, P<0.05 compared to DMED group; **, P<0.01 compared to DMED group.

Discussion

The risk factors identified for ED include older age, co-existing illnesses, longer duration of diabetes, and poor diabetes control (23,24). Current therapies have been associated with unsatisfactory outcomes (8). Therefore, in this study, we explored a combination treatment, both of which have shown potential for treating DMED and investigated their synergistic effect. Our results confirmed that the combination of Li-ESWT and KH-204 could be an effective approach for DMED by promoting proliferation, homing penile progenitor cells to the corpus cavernosum, and acting as antioxidants.

Stem cells are recognized as a novel and promising treatment because of their ability to self-regenerate and differentiate into various specialized cells (25), including endothelial cells, cavernous smooth muscle cells, and neurons. Only a few studies have investigated the effect of various stem cell types, including bone marrow mesenchymal stem cells, and adipose tissue-derived stem cells, on ED (26,27). However, to explore the effect of the stem cells more locally, Lin et al. applied Li-ESWT to penile progenitor cells (22). In that study, Li-ESWT was found to activate penile progenitor cell in situ. But this research was performed in physiology. As for pathology, especially for DMED, the microenvironment around penile progenitor cells lacks a blood supply. And oxidative stress induced by high glucose in DM also threatens penile progenitor cells (28,29). In this study, our results revealed that in the DMED microenvironment, Li-ESWT could promote angiogenesis and proliferation by activating penile progenitor cells (22), which was consistent with results in physiological studies. Furthermore, after Li-ESWT treatment, there were more penile progenitor cells in the corpus cavernosum. In a previous study, Qiu et al. found that Li-ESWT enhanced recruitment of mesenchymal stem cells (MSCs) in diabetic rats (16). In another study in a bone defect rat model, researchers also found that Li-ESWT resulted in the homing of stem cells (30). In this experiment, chemotactic factors, such as SDF-1 and PECAM, were upregulated after Li-ESWT. The higher expressions of SDF-1 (31) and PECAM drove stem cells to the corpus cavernosum, then transformed to penile progenitor cells.

Stem cells decreased oxidative stress response which contributed to apoptosis (32). And in DMED, reactive oxygen species (ROS) produced by oxidative stress were toxic to stem cells in the corpus cavernosum (33). Even though Li-ESWT recruited progenitor cells, oxidative stress could result in unsatisfactory therapeutic results. So we added KH-204 to our experiment. Meanwhile, Nrf2 and HO-1 as biomarkers of antioxidant were researched in recent studies. Kobayashi et al. found that Nrf2 was a crucial transcription factor which regulates the expression of defensive antioxidants and detoxification enzymes in vitro (34). And Hong et al. illuminated HO-1, as a downstream factor of Nrf2, was also involved in the antioxidant effects (35). In this study, our results showed KH-204 encouraged antioxidation by stimulating the Nfr2/HO-1 pathway. After KH-204 administration, the expression of Nfr2 and HO-1 were increased. Meanwhile, the results illuminated apoptosis in the corpus cavernosum was inhibited by KH-204. So we concluded KH-204 protected progenitor cells from oxidative stress through stimulating Nfr2/HO-1 pathway.

Effective drugs even don’t work if they can’t reach the target adequately. In this study, we proved that KH-204 improved DMED by decreasing oxidative stress in the penile tissue. But, as an oral herbal medicine, KH-204 must be transmitted to the target tissue in a timely fashion and in adequate amounts, and these requirements cannot be ignored. Due to the lack of blood supply in the corpus cavernosum of DEMD patients, KH-204 cannot satisfactorily arrive at the corpus cavernosum, which means that the delivery KH-204 into target tissues presents a new challenge. To approach this problem, we focused on the advantage of Li-ESWT. In our previous research (36), Li-ESWT improved angiogenesis in the corpus cavernosum, which meant KH-204 might be able to get into the corpus cavernosum through the hemodynamics enhanced by Li-ESWT. The results showed that KH-204 combined with Li-ESWT provided a better DMED treatment and that there was more KH-204 in the corpus cavernosum. However, the concentration of KH-204 in corpus cavernosum could not be tested because KH-204 is a compound of several herbs, which was a shortcoming of this study. Additionally, in this study, the combined therapy was administered at the early stage of DMED, which meant the effect of KH-204 and Li-ESWT at the middle and advanced stages of DMED were not assessed.


Conclusions

KH-204 protected penile progenitor cells, which were recruited to the corpus cavernosum by Li-ESWT, from apoptosis via its antioxidative effects. The combination of Li-ESWT and KH-204 could be a potential and efficient synergistic treatment for DMED.


Acknowledgments

Funding: This research was supported by the Bio and Medical Technology Development Program of the National Research Foundation (NRF) funded by the Ministry of Science and ICT (NRF-2018M3A9E8020861). This research was supported by a grant of the Korea Health Technology R&D Project through the Korea Health Industry Development Institute (KHIDI), funded by the Ministry of Health & Welfare, Republic of Korea (grant number: HI19C0310).


Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tau.2020.01.23). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All animal experiments in this study were approved by the Institutional Animal Care and Use Committee of the Catholic University of Korea (CUMC-2016-0218-01).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
