Prognostic model of 10 immune-related genes and identification of small molecule drugs in bladder urothelial carcinoma (BLCA)
Original Article

Prognostic model of 10 immune-related genes and identification of small molecule drugs in bladder urothelial carcinoma (BLCA)

Qianwei Xing1#, Shouyong Liu2#, Silin Jiang2#, Tao Li3, Zengjun Wang2, Yi Wang1

1Department of Urology, Affiliated Hospital of Nantong University, Nantong, China;2Department of Urology, the First Affiliated Hospital of Nanjing Medical University, Nanjing, China;3Department of Pathogen Biology-Microbiology Division, State Key Laboratory of Reproductive Medicine, Nanjing Medical University, Nanjing, China

Contributions: (I) Conception and design: Y Wang, Z Wang; (II) Administrative support: Y Wang, Z Wang; (III) Provision of study materials or patients: Y Wang, Z Wang; (IV) Collection and assembly of data: S Jiang; (V) Data analysis and interpretation: Q Xing, S Liu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Yi Wang. Department of Urology, Affiliated Hospital of Nantong University, No. 20 West Temple Road, Nantong, China. Email:; Zengjun Wang. Department of Urology, The First Affiliated Hospital of Nanjing Medical University, No. 300 Guangzhou Road, Nanjing, China. Email:

Background: We aimed to establish an immune-related gene (IRG) based signature that could provide guidance for clinical bladder cancer (BC) prognostic surveillance.

Methods: Differentially expressed IRGs and transcription factors (TFs) between BCs and normal tissues were extracted from transcriptome data downloaded from the TCGA database. Gene Ontology (GO) function and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were carried out to identify related pathways based on differently expressed IRGs. Then, univariate Cox regression analysis was performed to investigate IRGs with prognostic values and LASSO penalized Cox regression analysis was utilized to develop the prognostic index (PI) model.

Results: A total of 411 BC tissue samples and 19 normal bladder tissues in the TCGA database were enrolled in this study and 259 differentially expressed IRGs were identified. Networks between TFs and IRGs were also provided to seek the upstream regulators of differentially expressed IRGs. By means of univariate Cox regression analysis, 57 IRGs were analyzed with prognostic values and 10 IRGs were finally identified by LASSO penalized Cox regression analysis to construct the PI model. This model could significantly classified BC patients into high-risk group and low-risk group in terms of OS (P=9.923e-07) and its AUC reached 0.711. By means of univariate and multivariate COX regression analysis, this PI was proven to be a valuable independent prognostic factor (HR =1.119, 95% CI =1.066–1.175, P<0.001). CMap database analysis was also utilized to screen out 10 small molecules drugs with the potential for the treatment of BC.

Conclusions: Our study successfully provided a novel PI based on IRGs with the potential to predict the prognosis of BC and screened out 10 small molecules drugs with the potential to treat BC. Besides, networks between TFs and IRGs were also displayed to seek its upstream regulators for future researches.

Keywords: Bladder cancer (BC); immune-related genes (IRGs); signature; prognostic index (PI); survival

Submitted Mar 02, 2020. Accepted for publication Sep 13, 2020.

doi: 10.21037/tau-20-696


Bladder cancer (BC), as one of the major causes of cancer related mortality worldwide, it attributed to nearly 549,000 new cases and 200,000 deaths in the United States, according to Global Cancer Statistics 2018 (1). Tobacco smoking and occupational exposure to certain chemical carcinogens remained the main risk factors of BC (2-4). Because of the gradual popularization of bladder B-ultrasound, transurethral cystoscopy, etc., many BC patients could be diagnosed in early time and receive timely and effective treatment, including transurethral resection, radiation therapy, and chemotherapy. However, the prognosis for BC patients was still unsatisfactory, due to frequent recurrence and metastasis (5,6).

A growing number of evidence had highlighted the important roles of immune-related genes (IRGs) in cancer initiation, progression, metastasis and so on. Therein, CD58, a cell-surface glycosylated adhesion molecule, could enhance the self-renewal of colorectal tumor-initiating cells and promote epithelial-mesenchymal transition (EMT) process through activating Wnt/β-catenin pathway in colorectal cancers (7). The overexpression of ZBTB20, a transcriptional repressor, could lead to enhancement of migration and invasion ability of gastric cancer by inhibiting IκBα to activate NF-κB (8). Besides, ZFP36L2, a RNA-binding protein, had been shown to inhibit cell proliferation in pancreatic ductal adenocarcinoma (PDAC), and it was associated with good prognosis of PDAC patients (9). IRGs also played very important roles in BC. Martínez et al. demonstrated that BMP-4, secreted by BC cells, induced monocyte/macrophage polarization toward an M2 phenotype, and promoted tumor progression (10). Ramakrishnan et al. found that inhibition of EZH2 in muscle-invasive BC with KDM6A and SWI/SNF family member mutations could activate a natural killer (NK) cell-based immune response to drive tumor differentiation and death in BC cells and xenografts (11). Cheah et al. elucidated the importance of CD14 in BC, and showed that high levels of CD14 resulted in the increase of inflammation mediators and drove tumor proliferation to promote tumor growth (12). Although a number of previous studies had proposed the roles of IRGs in BC, there were few focusing on their importance to systematically predict overall survival (OS) of BC patients.

As a result, we aimed to establish a signature based on IRGs that could predict OS for BC patients in this study. We utilized the transcriptome data downloaded from The Cancer Genome Atlas (TCGA) to develop a prognostic index (PI) by using univariate Cox regression analysis and least absolute shrinkage and selection operator (LASSO) regression analysis. To evaluate the clinical values of this PI, we analyzed whether this signature was associated with the survival outcome of BC patients and clinicopathological factors. We present the following article in accordance with the TRIPOD reporting checklist (available at


Data acquisition

Transcriptome profiling data and related clinical information of bladder urothelial carcinoma (BLAC) were downloaded and extracted from The Cancer Genome Atlas (TCGA) Data Portal (; accessed August 2019). Overall, we enrolled a total of 430 BLAC cases containing 411 BC tissue samples and 19 normal bladder tissues into this study. All procedures performed in this study were in accordance with the Declaration of Helsinki (as revised in 2013).

Identification and enrichment analysis of differently expressed IRGs

We applied “Lima” package in R statistical software to estimate differently expressed IRGs between BC and normal bladder tissues. IRGs exhibiting at least 2-fold changes with an adjusted P value less than 0.05 were identified as the remarkably differentially expressed IRGs. We also performed gene functional enrichment analyses, including Gene Ontology (GO) functional annotations and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analysis, to analyze the biological processes, cellular components, molecular functions and signaling pathways of targeted genes by use of “clusterProfiler” R package.

Identification of differently expressed transcription factors (TFs) and construction of the correlation network between TFs and IRGs

We applied the Cistrome database ( to predict TF targets and extract enhancer profiles in cancers. The prediction was from integrative analysis of TCGA expression profiles and public ChIP-seq profiles. Then we identified differently expressed TFs by use of “Lima” package in R statistical software between BLAC and normal bladder tissues. Correlation test between differently expressed TFs and IRGs was conducted by R programming language. Moreover, we set correlation coefficient at least 0.4 with a P value less than 0.01 as the remarkably correlated.

Construction of the PI model based on IRGs

We performed univariate Cox regression analyses to select IRGs significantly associated with OS of BC patients. LASSO-penalized Cox regression model was used to identify the most significantly survival related IRGs. The formula used for calculating the PI is as follow β1 × gene1 expression + β2 ×gene2 expression + ····· + βn × gene expression, where β corresponded to the correlation coefficient.

Evaluation of the PI model

We calculated the risk scores of each patient, and set the median value as the cut-off point to divide the BC patients enrolled into a high-risk group and a low-risk group. Kaplan-Meier plots were generated to analyze the performance of PI model in predicting survival outcomes. The receiver operating characteristic curves (ROC) were created, and the area under the curve (AUC) values was calculated to assess the model specificity and sensitivity. The risk score distribution of patients in different risk groups, and the heatmap of finally confirmed IRGs were also displayed. A prognostic nomogram was also generated to analyze the relationship between individual predictors and survival rates in BC patients. To further determine whether the PI model can be used as an independent prognostic factor, univariate and multivariate cox regression analysis were performed to calculate the HR values for the PI and other clinicopathologic parameters including age, sex, stage, race, grade as well as T, M, N stage. Furthermore, we also conducted a clinical correlation analysis to analyze the correlation between PI and clinicopathologic parameters described above.

Identification of candidate small molecule drugs

Connectivity map (CMap) facilitated researchers to quickly identify molecule drugs highly correlated with diseases and discover its possible mechanism (13). Connectivity scores ranged from −1 to 1 and they were utilized to estimate how closely a compound was connected to the query signature. Negative score indicated that the query signature could be repressed by a drug, while a positive score could be promoted by a drug.

Statistical analysis

We applied R software (version 3.4.1, to complete date statistical analyses in this article. It was considered statistically significant when the difference met a joint satisfaction of FDR <0.05 and fold changes ≥2, To establish a prognostic model, univariate and LASSO-penalized COX regression analyses were performed to assess the relationship between IRGs expression and survival data. The receiver operating characteristic curves were created by the “survival ROC” package of R and AUC values were also calculated by this package too. Univariate and multivariate cox regression analyses were to further determine whether our established PI model could be used as an independent prognostic factor. All statistical tests were two-sided and P<0.05 was regarded to be statistically significant.


Differentially expressed IRGs

The overall flow diagram for this study was displayed in Figure 1. RNA-seq data of 411 BC tissue samples and 19 normal bladder tissues were downloaded from TCGA. A total of 259 differentially expressed IRGs were extracted with their expression values. The heatmap of differentially expressed IRGs between the BC tissues and normal bladder tissues were demonstrated in Figure 2A. According to the criteria of a FDR <0.05 and |log2(fold change)| >1, we finally obtained 119 up-expressed and 140 down-expressed IRGs (Figure 2B,C).

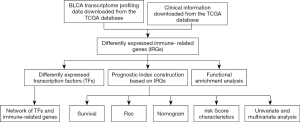

Figure 1 The flow diagram for this study

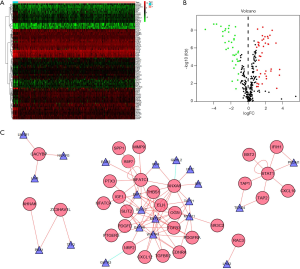

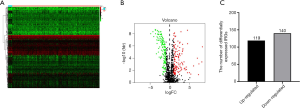

Figure 2 Differentially expressed immune-related genes (IRGs) between bladder cancer (BC) tissues and normal bladder tissues. (A) Heatmap of differentially expressed IRGs expression levels; (B) the volcano plot for differentially expressed IRGs from the TCGA data portal. Red indicates high expression and green low expression. Black shows those genes showed no difference between BC and normal bladder tissues; (C) the histogram of the numbers of the up- and down-regulated IRGs.

Functional enrichment analysis

On the basis of the RNA-seq data downloaded from TCGA, we carried out GO term enrichment analysis and KEGG pathway analysis to study the biological function of the differentially expressed IRGs. The GO terms function and KEGG pathway enrichment of these genes were summarized in Table 1.

Table 1

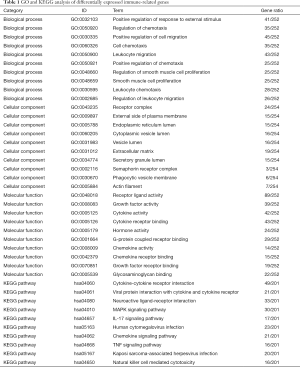

Table 1 GO and KEGG analysis of differentially expressed immune-related genes
Full table

As to GO term enrichment analysis, for biological process, the differentially expressed IRGs enriched in positive regulation of response to external stimulus, regulation of chemotaxis, positive regulation of cell migration, cell chemotaxis, leukocyte migration, positive regulation of chemotaxis, regulation of smooth muscle cell proliferation, smooth muscle cell proliferation, leukocyte chemotaxis, regulation of leukocyte migration; for cellular component, the differentially expressed IRGs enriched in receptor complex, external side of plasma membrane, endoplasmic reticulum lumen, cytoplasmic vesicle lumen, vesicle lumen, extracellular matrix, secretory granule lumen, semaphorin receptor complex, phagocytic vesicle membrane, actin filament; For molecular function, the differentially expressed IRGs enriched in receptor ligand activity, growth factor activity, cytokine activity, cytokine receptor binding, hormone activity, G-protein coupled receptor binding, chemokine activity, chemokine receptor binding, growth factor receptor binding, glycosaminoglycan binding (Figure 3A).

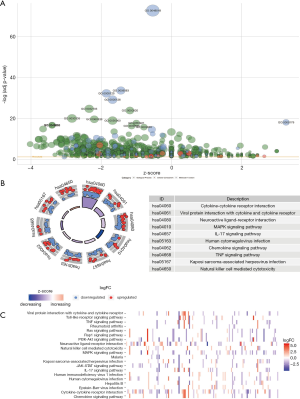

Figure 3 Function enrichment analysis of the differentially expressed IRGs between BC tissues and normal bladder tissues. (A) The bubble plot of enriched GO terms. Greed circles showed the biological process, red corresponded to the cellular component, and blue indicated the molecular function category. (B) KEGG analysis of differentially expressed IRGs. The outer circle shows a scatter plot for each term of the logFC of the assigned genes. Red circles display up-regulation, and blue ones down-regulation. (C) The heatmap of the relationship between IRGs and pathways.

With respect to KEGG pathway analysis, the result showed that the differentially expressed IRGs mainly enriched in cytokine-cytokine receptor interaction, viral protein interaction with cytokine and cytokine receptor, neuroactive ligand-receptor interaction, MAPK signaling pathway, IL-17 signaling pathway, and so on (Figure 3B). The Z-score of enriched pathways less than zero indicated that the related pathways were more likely to be decreased. The heatmap of the relationship between IRGs and pathways was also displayed (Figure 3C).

Network analysis of TF-IRG interaction

To explore the interaction between transcription factors (TFs) and IRGs, we extracted 77 differentially expressed TFs by analyzing the RNA-seq data described above. The heatmap of TFs with markedly different expression between the BC tissues and normal bladder tissues were shown in Figure 4A with 41 up-expressed and 36 down-expressed TFs (Figure 4B). The TF-IRG interaction network was detailed in Figure 4C.

Figure 4 Network analysis of TF-IRG interaction. (A) Heatmap of differentially expressed TFs; (B) Volcano map of differentially expressed TFs; (C) network shows the relationships between TFs and IRGs.

Construction of PI model

Univariate Cox regression analysis was then performed to investigate the prognostic values of the 259 differentially expressed IRGs. As shown in Figure 5A and Table S1, a total of 57 IRGs were found to be significantly associated with OS in BC patients (P<0.05). Next, LASSO regression analysis was performed to develop the PI model with 10 relevant IRGs (Figure 5B,C). Their specific coefficients of the 10 genes are shown in Table 2. The PI was calculated by use of the formula described above: Risk score = (−0.000824 × TAP1 expression) + (0.003970 ×RBP7 expression) + (−0.000031 × STAT1 expression) + (0.005626 × PDGFRA expression) + (0.004692 ×AHNAK expression) + (0.000290 × OLR1 expression) + (0.009473 × RAC3 expression) + (0.001882 × EDNRA expression) + (0.078175 × IGF1 expression) + (-0.009884 ×SH3BP2 expression).

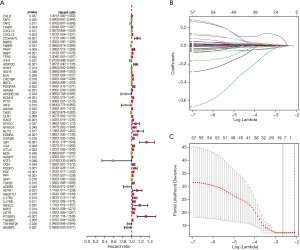

Figure 5 Construction of PI model. (A) 57 IRGs with significant prognostic values after univariate cox regression analysis; (B) LASSO coefficient profiles of these 57 IRGs; (C) tuning the penalty parameter in LASSO using 10-fold cross validation.
Table S1

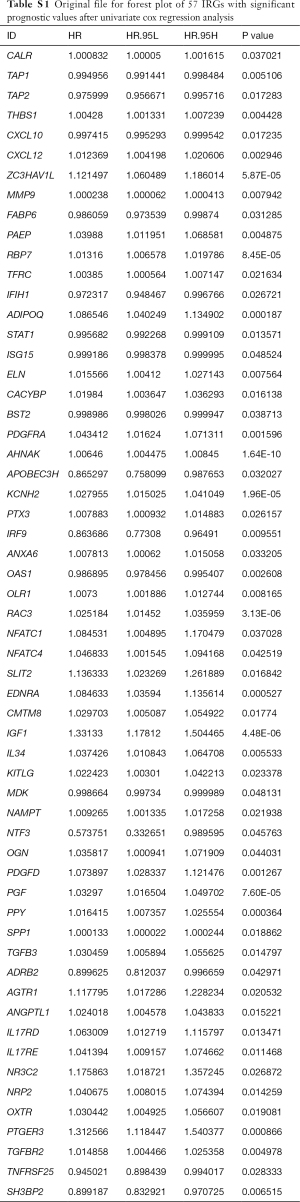

Table S1 Original file for forest plot of 57 IRGs with significant prognostic values after univariate cox regression analysis
Full table
Table 2

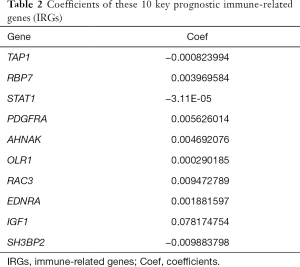

Table 2 Coefficients of these 10 key prognostic immune-related genes (IRGs)
Full table

Evaluation of our established PI model

According to the formula described above, we calculated the risk scores of each patient to divide the BC patients into high-risk groups and low-risk groups, based on the median value as the cut-off point. As shown in Figure 6A, with the increase of the risk scores, the patients in high-risk group increased, and the number of dead persons grew. The heatmap of the 10 key prognostic genes expression profiles in the TCGA dataset was also demonstrated. To identify the performance of PI in predicting the clinical outcome of BC patients, the Kaplan-Meier plots were carried out to analyze the different survival time between the high- and low-risk groups. The results showed that patients in the high-risk group had a shorter OS time than patients in the low-risk group (P=9.923e-07, Figure 6B). The ROC curve analysis was performed to evaluate how well the PI predicts the prognoses of BC patients. The AUC for the PI was 0.711, demonstrating the important value of the PI to predict survival of BC patients (Figure 6C). For providing a quantitative approach to predict cancer patient survival, we assembled a nomogram, integrating all the 10 key prognostic genes, which could help estimate 1-, 3-, and 5-year survival probabilities (Figure 6D).

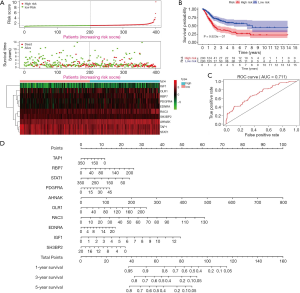

Figure 6 Evaluation of this PI model. (A) The risk score distribution of patients in the BC patients; the number of dead persons grew with increased risk scores; the heatmap of the 10 key prognostic IRGs expression profiles in the TCGA dataset. (B) Kaplan-Meier plot represents that patients in the high-risk group had significantly shorter overall survival time than those in the low-risk group (P=9.923e-07). (C) The ROC curve of this PI model with its AUC of 0.711. (D) Prognostic nomogram for BC patients, integrating 10 key prognostic IRGs and our established PI model.

We next performed univariate and multivariate Cox regression analysis to evaluate prognostic value of the PI and other clinical parameters including age, gender, race, tumor stage, T, M, N. The hazard ratios (HRs) for PI in the univariate Cox regression analyses was HR =1.131, 95% confidence interval (CI) =1.080–1.185 (P<0.001, Figure 7A and Table S2), and in the multivariate Cox regression analyses was HR =1.119, 95% CI =1.066–1.175 (P<0.001, Figure 7B and Table S3). As displayed in Figure 7C, it detailed the AUC of all prognostic factors (age, gender, race, tumor stage, T, M, N and risk score) and our established PI model had the highest AUC value. We also integrated both the PI and the clinicopathologic risk factors mentioned above to assemble a nomogram, helping estimate 1-, 3-, and 5-year survival probabilities (Figure 7D). The univariate and multivariate Cox regression analysis of the PI and OS-associated clinical features were shown in Table 3.

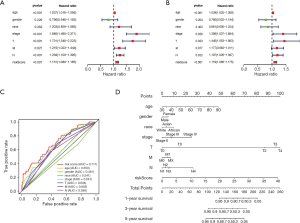

Figure 7 Univariate/multivariate Cox regression analysis, multi-ROC analyses and prognostic nomogram; (A) Univariate Cox regression analysis of our established PI model and seven clinical features; (B) multivariate Cox regression analysis of our established PI model and seven clinical features; (C) Multi-ROC analyses of our established PI model and seven clinicopathologic risk factors; (D) prognostic nomogram for BC patients, integrating our established PI model and seven clinicopathologic risk factors.
Table S2
Table S2 Original file for forest plot of univariate Cox regression analysis of our established PI model and seven clinical features
Full table
Table S3
Table S3 Original file for forest plot of multivariate Cox regression analysis of our established PI model and seven clinical features
Full table
Table 3

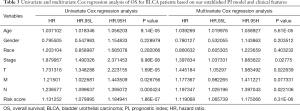

Table 3 Univariate and multivariate Cox regression analysis of OS for BLCA patients based on our established PI model and clinical features
Full table

Clinical correlation analysis of the 10 genes and the PI

We also performed clinical correlation analysis to study the relationships between the 10 prognostic IRGs, the PI model and the clinicopathologic risk factors. As detailed in Table 4, we found that the PI was positively correlated with race, grade, M and N period (P<0.05), and negatively correlated with stage and T period (P<0.05).

Table 4

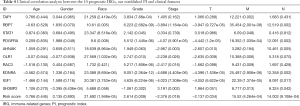

Table 4 Clinical correlation analysis between the 10 prognostic IRGs, our established PI and clinical features
Full table

Related small molecule drugs screening

We screened out candidate small molecule drugs of BLAC based on differently expressed IRGs by performing CMap database analysis. By analyzing consistent differently expressed probesets between BLAC samples and adjacent normal samples, we identified the related small molecule drugs with highly significant correlations. 10 small molecule drugs were screened out by the number of instances (n>2) and P value (<0.05). They were shown in Table 5. Among these 10 small molecule drugs, ketorolac, fluorocurarine, AR-A014418, lycorine, mebeverine, hydroquinine, and cefamandole showed negative correlation, and dexpanthenol, W-13, and benzbromarone showed positive correlation. The 7 negatively related small molecules have the potential to treat BLAC, so as the antagonists of the 3 positively related.

Table 5

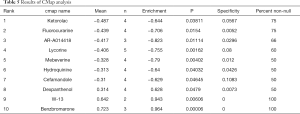

Table 5 Results of CMap analysis
Full table


As one of the most lethal cancers worldwide (1,14,15), BC has been paid much attention to all the time. In scientific studies, increasing efforts have been put to research the specific mechanisms of BC initiation, progression and prognosis, for the diagnosis, treatment and prognostic surveillance of BC. Many kinds of urinary and blood biomarkers (16-19) were researched for the detection of BC, some of which showed high sensitivity and specificity and may have clinical application value in the future. As reported, long noncoding RNA LNMAT1 and BLACAT2 could promote BC lymphatic metastasis (20,21). And circular RNAs like FNDC3B, ITCH, BCRC-3 and ACVR2A were reported to play important roles in suppressing BC progression (22-25). However, due to high recurrence rate, the long-term efficacy of BC treatment was always unsatisfactory in actual clinical work. Previous research results were not well translated into clinical applications. Hence, it was imperative to develop novel approach to evaluate the prognosis of BC patients, to provide guidance for clinical BC surveillance. In the current study, we concentrated on developing IRGs-based prognostic signature to investigate whether IRG could function as prognostic biomarkers in BC, by analyzing transcriptome data downloaded from TCGA.

In the present study, we first extracted differently-expressed IRGs between BC tissue samples and normal bladder tissues. To identify differently-expressed IRGs with prognostic values, we performed univariate Cox regression analysis and confirmed 57 IRGs. Then, LASSO penalized Cox regression analysis was conducted and 10 IRGs (TAP1, RBP7, STAT1, PDGFRA, AHNAK, OLR1, RAC3, EDNRA, IGF1 and SH3BP2) were identified to develop the PI. Therein, TAP1, a component of the antigen-presenting machinery, was involved in tumor immune escape. It was reported that down-regulation of TAP1 could elicit immune evasion and predict poor prognosis (26,27). Elmasry et al. speculated that in colon cancer, RBP7 functioned as a promotor of tumor migration and invasion through EMT, and indicated poor cancer specific survival (28). As one member of signal transducer and activator of transcription (STAT) family proteins, STAT1 played important roles in tumor microenvironment (29). Meyer Zu Horste et al. demonstrated that STAT1 participated in the process of TH17 differentiation into TH1 (30). PDGFRA mutations were common in gastric, omental and mesenteric tumor (31), and much effort had been made to promote treatments targeting PDGFRA (32-34). AHNAK is a giant structural nucleoprotein involved in diverse biological process including muscle membrane repair, blood-brain barrier, and cell proliferation and migration (35-38). As to OLR1, a lectin-like scavenger receptor, it was mainly expressed in vascular cells and vasculature-rich organs (39), and could function as inflammation promotor in atherogenesis (40). Coincidently, RAC3 could promote ox-LDL induced endothelial dysfunction (41). RAC3 also had correlation with autophagy (41-43), cell migration and invasion (44-46). Much evidence revealed the importance of EDNRA in cardiovascular and cerebrovascular diseases (47-49). As a research hotspot, IGF1 had been receiving much attention and its roles in endocrine disorders, atherosclerosis and cancer promoted development of disease diagnosis and treatment (50-52). SH3BP2 was an adapter protein involved in adaptive and innate immune response signaling, and mainly participated in inflammatory bone loss (53-55). Subsequently, univariate and multivariate Cox regression analysis were carried out to shed light on that this PI model could be an independent predictor. We also analyzed the relationship between this PI model and some clinicopathologic risk factors to confirm their clinical relevance.

Besides, in order to preliminarily explore the relationship between the 57 differentially expressed IRGs and TFs, we constructed a network for them. We first extracted 77 differentially expressed TFs by analyzing the RNA-seq data described above. Then the TF-IRG interaction network was conducted and it could provide a basis for further research. On the one hand, this network analysis was to explore the interactions between TFs and IRGs. On the other hand, it also provided guidance and assistance for further basic researches to seek the upstream regulators of differently expressed IRGs. By analyzing CMap database, we screened out several small molecule drugs with potential therapeutic efficacy to identify candidate small molecule of BLAC. Ketorolac, as a member of non-steroidal anti-inflammatory drugs (NSAIDs) family, was mainly used for inflammation and pain treatment after surgery. In a retrospective analysis of two series of 827 and 1,007 breast cancer patients, Desmedt et al. found that the intra-operative administration of ketorolac was statistically significantly associated with a reduction of distant recurrences (56). AR-A014418, a glycogen synthase kinase-3 inhibitor, could inhibit cell proliferation and induce cell apoptosis in cancers including pancreatic cancer (57) and neuroblastoma (58,59). It also could sensitize pancreatic cancer cells to gemcitabine (60). Wang et al. demonstrated that Lycorine, an alkaloid extracted from Amaryllidaceae genera, could induce apoptosis of BC T24 cells (61). It was reported that anti-calmodulin agent W-13 had the ability to suppress breast cancer cell growth (62) and colony formation (63). As to benzbromarone, it was found to have cytotoxic effects in in human hepatocarcinoma FLC4 cells (64). To our best knowledge, there have no cancer treatment researches of the fluorocurarine, mebeverine, hydroquinine, cefamandole, and dexpanthenol. Overall, our study provided the feasibility of some potential biomarkers or molecular targets in the treatment of BC.

In recent decades, much attention has been paid to researches concentrating on immune in cancer biological and clinical research. T-regulatory (Treg) cells were found to be enriched in BC, and CD4+CD25+ T cells were elevated in patient blood compared with healthy individuals (65). Treg cells were showed to exert the ability to suppress essential antitumor responses (66). Related researches demonstrated that Th17 cells were negatively correlated with Treg cells in BC (67). IL-2 is primarily produced by T-lymphocytes. It was reported that IL-2 could promote the conversion of Treg cells to TH17 cells (68-70). BCG immunotherapy was an important component of BC treatment. Intravesical BCG instillation activated urothelial cells and antigen-presenting cells (APCs), leading to the production of cytokines and chemokines, to further recruit immune cells (71). Cytokines and chemokines like IL-2, IL-6, IL-8, GM-CSF, CC-chemokine ligand 2 (CCL2), and CCL3 could be found in the urine of patients who has underwent BCG treatment (68,72,73). It was reported that IL-2 had correlation with BC recurrence, and along with IL-6, the two cytokines were suggested to be used to monitor BCG treatment effect (74).

The strength of this article was that it was the first time for us to perform a systematic analysis of the roles of immunity in BLCA with a robust statistical approach. A novel PI was successfully established and carefully evaluated. Moreover, networks between IRGs and TFs were also constructed for future basic research. Our study has some limitations. Firstly, we studied only IRGs and other genes associated with OS of BC were not enrolled. Secondly, this study is retrospective and our results should be further validated in prospective investigations.


Taken together, our study successfully developed a novel PI model to predict the OS of BC and it was carefully evaluated. Moreover, networks between TFs and IRGs were also displayed to seek its upstream regulators for future researches. Besides, we also screened out 10 small molecules drugs with the potential to treat BC, based on differently expressed IRGs. Our study highlights the importance of IRGs in clinical application. Although our established PI model stills needs to be further validated by more prospective studies, it was promising to assist clinicians in clinical BC surveillance.


We would like to thank the researchers and study participants for their contributions.

Funding: This article was funded by Postdoctoral Science Foundation of Jiangsu Province: 2020Z071.


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
