A single cut-off value of sperm DNA fragmentation testing does not fit all

A single cut-off value of sperm DNA fragmentation testing does not fit all

Chak-Lam Cho1, Ashok Agarwal2, Ahmad Majzoub3, Sandro C. Esteves4,5,6

1Division of Urology, Department of Surgery, Kwong Wah Hospital, Hong Kong, China;2American Center for Reproductive Medicine, Cleveland Clinic, Cleveland, OH, USA;3Department of Urology, Hamad Medical Corporation, Doha, Qatar;4ANDROFERT, Andrology and Human Reproduction Clinic, Referral Center for Male Reproduction, Campinas, SP, Brazil;5Department of Surgery (Division of Urology), University of Campinas (UNICAMP), Campinas, Brazil;6Department of Clinical Medicine, Faculty of Health, Aarhus University, Denmark

Correspondence to: Ashok Agarwal. Professor and Director, American Center for Reproductive Medicine, Cleveland Clinic, Mail Code X-11, 10681 Carnegie Avenue, Cleveland, OH 44195, USA. Email: AGARWAA@ccf.org.

Response to: Evenson DP. Evaluation of sperm chromatin structure and DNA strand breaks is an important part of clinical male fertility assessment. Transl Androl Urol 2017;6:S495-500.

Submitted Aug 15, 2017. Accepted for publication Aug 16, 2017.

doi: 10.21037/tau.2017.08.12

We are delighted to read the insightful commentary by Dr. Evenson (1), a well-known pioneer in the field of SDF testing, in response to the practice recommendations on clinical utility of sperm DNA fragmentation (SDF) testing by Agarwal et al. (2).

The process of protamination during spermiogenesis was discovered as early as in the 1940s and 1950s (3,4). It is not until 1970 that the association between sperm DNA damage and reduction in fertility was illustrated (5). In 1980, Dr. Evenson et al. developed sperm chromatin structure assay (SCSA)—a flow cytometric assay for detection of SDF (6). In this test, the semen sample is pretreated by acid and sites of DNA strand breaks are subsequently stained by acridine orange which is a nucleic acid-selective cationic fluorescent dye. The use of flow cytometry allowed evaluation of a large number of cells rapidly by measuring the metachromatic shift of fluorescence (7). Various SDF assays, including terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) and sperm chromatin dispersion (SCD), were introduced after SCSA. Following the breakthrough in laboratory assessment of SDF, the etiologies of SDF and its negative impact on reproductive outcomes were studied extensively in the last two decades. The large body of research conducted by Dr. Evenson plays an important role in our understanding of SDF and male infertility.

In his commentary, Dr. Evenson shared his perspective on the pivotal role of SDF assay in clinical male fertility assessment (1). He believes that SCSA measures existing DNA strand breaks due to the high penetrating ability of acridine orange dye to the compact nuclear chromatin structure. He discussed the use of flow cytometry in increasing precision and accuracy of SDF assessment, the importance of high correlations of SDF results between laboratories and lastly the evidence supporting the association between SDF result and natural pregnancy/assisted reproduction outcomes were succinctly summarized. Of many points highlighted by Dr. Evenson, we want to expand the discussion on one topic—the threshold value for SDF assays.

The lack of a cut-off value for SDF assays is often considered a major handicap as it casts doubts about the wider clinical application of the test. Currently, there seems to be insufficient evidence to support the routine use of SDF in male factor evaluation (8). This is mainly due to heterogeneous test methodologies and lack of rigorous SDF cut-off values in the literature (8). The quest for a clear threshold of a diagnostic test for a specific clinical circumstance would be an ideal situation. However, it is important to note that this approach is not realistic for all situations. A single magic test with a clear cut-off in the context of the complex human reproductive system is probably an oversimplification. The often coexistence of both male and female factors in an infertile couple cannot be accurately assessed by a single laboratory test on either partner. Indeed, a panel of diagnostic tests is usually required clinically for comprehensive assessment of patients nowadays. The incorporation of scoring systems or nomograms into modern clinical practice to assist the correct interpretation of multiple test results reflects the deficit of using a single clinical test. Moreover, fecundity and fertility potential should be conceptualized in terms of probability rather than a bimodal parameter and it should not be defined by a simple ‘yes’ or ‘no’. It is also important to realize the capability of SDF assays in predicting reproductive outcomes despite the inconsistent cut-off values reported by various studies (9). Therefore, the claim to deter the clinical application of SDF testing in view of the lack of a clear-cut threshold seems less convincing.

There is good quality data on the relationship between SDF and natural conception using the excellent endpoint of time-to-pregnancy. The prospective Longitudinal Investigation of Fertility and the Environment (LIFE) study (10) and the Danish First Pregnancy Planner Study (11) not only revealed the significance of male factor in human reproduction; they illustrated the concept that fecundity starts dropping with SCSA SDF index >20% and it drops significantly at SDF index >40% (11). Although SCSA SDF index of 30% is generally accepted as the threshold, it may not represent the best strategy to interpret the test result in prediction of pregnancy outcome. In fact, SCSA SDF index between 20% to 40% should be regarded as the grey zone. While SDF indexes of <20% and >40% conveys a clearer message in prediction of natural pregnancy outcomes, the situation is less clear for men with SDF index falling into the grey zone. In these cases, clinicians should assess other confounders, including female factors, which may also play a role in determining the reproductive outcomes.

In contrast to the abundance of well conducted studies to predict natural conception from the results of SDF tests, the data in the literature is confusing when it comes to assisted reproduction particularly in vitro fertilization (IVF) and intracytoplasmic sperm injection (ICSI). The cut-off values of various SDF tests in neat semen are summarized in Table 1. Despite the variation in reported cut-off values, we believe that the interpretation of a test result should not be limited by a cut-off value. In fact, a cut-off has its role in scientific studies for statistical purpose. At the same time, the nature of SDF as one of the multiple continuous variables interacting with other confounding factors in clinical practice should not be overlooked. Therefore, the approach to adopt multiple cut-off values in accordance of different scenario in clinical practice may represent another sensible way to proceed as a single cut-off value of SDF testing may not fit all.

Table 1

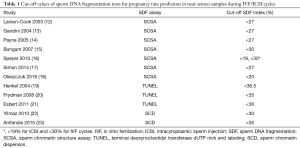

Table 1 Cut-off values of sperm DNA fragmentation tests for pregnancy rate prediction in neat semen samples during IVF/ICSI cycles
Full table




Conflicts of Interest: The authors have no conflicts of interest to declare.


  1. Evenson DP. Evaluation of sperm chromatin structure and DNA strand breaks is an important part of clinical male fertility assessment. Transl Androl Urol 2017;6:S495-S500.
  2. Agarwal A, Majzoub A, Esteves SC, et al. Clinical utility of sperm DNA fragmentation testing: practice recommendations based on clinical scenarios. Transl Androl Urol 2016;5:935-50. [Crossref] [PubMed]
  3. Pollister AW, Mirsky AE. The nucleoprotamine of trout sperm. J Gen Physiol 1946;30:101-16. [Crossref] [PubMed]
  4. Alfert M. Chemical differentiation of nuclear proteins during spermatogenesis in the salmon. J Biophys Biochem Cytol 1956;2:109-14. [Crossref] [PubMed]
  5. Ringertz NR, Gledhill BL, Darzynkiewicz Z. Changes in deoxyribonucleoprotein during spermiogenesis in the bull. Sensitivity of DNA to heat denaturation. Exp Cell Res 1970;62:204-18. [Crossref] [PubMed]
  6. Evenson DP, Darzynkiewicz Z, Melamed MR. Relation of mammalian sperm chromatin heterogeneity to fertility. Science 1980;210:1131-3. [Crossref] [PubMed]
  7. Darzynkiewicz Z, Traganos F, Sharpless T, et al. Thermal denaturation of DNA in situ as studied by acridine orange staining and automated cytofluorometry. Exp Cell Res 1975;90:411-28. [Crossref] [PubMed]
  8. Jarrow J, Sigman M, Kolettis PN, et al. The optimal evaluation of the infertile male: best practice statement reviewed and validity confirmed 2011. Available online: https://www.auanet.org/education/guidelines/male-infertility-d.cfm
  9. Agarwal A, Cho CL, Esteves SC. Should we evaluate and treat sperm DNA fragmentation? Curr Opin Obstet Gynecol 2016;28:164-71. [Crossref] [PubMed]
  10. Buck Louis GM, Sundaram R, Schisterman EF, et al. Semen quality and time to pregnancy: the Longitudinal Investigation of Fertility and the Environment Study. Fertil Steril 2014;101:453-62. [Crossref] [PubMed]
  11. Spanò M, Bonde JP, Hjollund HI, et al. Sperm chromatin damage impairs human fertility. The Danish First Pregnancy Planner Study Team. Fertil Steril 2000;73:43-50. [PubMed]
  12. Larson-Cook KL, Brannian JD, Hansen KA, et al. Relationship between the outcomes of assisted reproductive techniques and sperm DNA fragmentation as measured by the sperm chromatin structure assay. Fertil Steril 2003;80:895-902. [Crossref] [PubMed]
  13. Gandini L, Lombardo F, Paoli D, et al. Full-term pregnancies achieved with ICSI despite high levels of sperm chromatin damage. Hum Reprod 2004;19:1409-17. [Crossref] [PubMed]
  14. Payne JF, Rabum DJ, Couchman GM, et al. Redefining the relationship between sperm deoxyribonucleic acid fragmentation as measured by the sperm chromatin structure assay and outcomes of assisted reproductive techniques. Fertil Steril 2005;84:356-64. [Crossref] [PubMed]
  15. Bungum M, Humaidan P, Axmon A, et al. Sperm DNA integrity assessment in prediction of assisted reproduction technology outcome. Hum Reprod 2007;22:174-9. [Crossref] [PubMed]
  16. Speyer BE, Pizzey AR, Ranieri M, et al. Fall in implantation rates following ICSI with sperm with high DNA fragmentation. Hum Reprod 2010;25:1609-18. [Crossref] [PubMed]
  17. Simon L, Liu L, Murphy K, et al. Comparative analysis of three sperm DNA damage assays and sperm nuclear protein content in couples undergoing assisted reproduction treatment. Hum Reprod 2014;29:904-17. [Crossref] [PubMed]
  18. Oleszczuk K, Giwercman A, Bungum M. Sperm chromatin structure assay in prediction of in vitro fertilization outcome. Andrology 2016;4:290-6. [Crossref] [PubMed]
  19. Henkel R, Hajimohammad M, Stalf T, et al. Influence of deoxyribonucleic acid damage on fertilization and pregnancy. Fertil Steril 2004;81:965-72. [Crossref] [PubMed]
  20. Frydman N, Prisant N, Hesters L, et al. Adequate ovarian follicular status does not prevent decrease in pregnancy rates associated with high sperm DNA fragmentation. Fertil Steril 2008;89:92-7. [Crossref] [PubMed]
  21. Esbert M, Pacheo A, Vidal F, et al. Impact of sperm DNA fragmentation on the outcome of IVF with own or donated oocytes. Reprod Biomed Online 2011;23:704-10. [Crossref] [PubMed]
  22. Yilmaz S, Zergeroglu AD, Yilmaz E, et al. Effects of sperm DNA fragmentation on semen parameters and ICSI outcome determined by an improved SCD test, Halosperm. Int J Fertil Steril 2010;4:73-8.
  23. Anifandis G, Bounartzi T, Messini GI, et al. Sperm DNA fragmentation measured by Halosperm does not impact on embryo quality and ongoing pregnancy rates in IVF/ICSI treatments. Andrologia 2015;47:295-302. [Crossref] [PubMed]
Cite this article as: Cho CL, Agarwal A, Majzoub A, Esteves SC. A single cut-off value of sperm DNA fragmentation testing does not fit all. Transl Androl Urol 2017;6(Suppl 4):S501-S503. doi: 10.21037/tau.2017.08.12
